首頁| 序號 | 攪拌器 型式 |
常用尺寸 | 常用運轉條件及粘度 范圍 |
流動狀態 | 適用范圍 | 備注 |
| 102 | LG | DJ/D=0.4～0.5 D/DJ=1 h/DJ=2.5 |
μ＜105cp n=0.5～50rpm V＜2m/s |
軸向流,為慢速型攪拌器,層流區操作,流體沿螺旋面上升或下降形成軸向的上下循環 | 適用于中高粘度液的混合和傳熱 | 螺桿直徑小可偏心放入攪拌槽內,槳葉離壁距離＜1/20dj,槽壁可起擋板的作用 |
| 103 | LGH | 帶上導流筒,軸向流加強,在導筒內外形成向下或向上的循環 | D′=0.7DJ | |||
| 104 | LD | DJ/D=0.9～0.98 | 層流狀態下操作,一般是液體沿槽壁螺旋上升再沿槳軸而下 | |||
| 105 | LDG | 螺帶螺桿的組合,具有螺帶和螺桿的特性,強化了液體外圍的循環 | 特別對非牛頓型擬塑性及粘彈性液體有效 | |||
| 106 | ZDG | 錐底,流型似LD | ||||
| 107 | ZLG | 錐底,流型似LDG |
螺桿式攪拌器

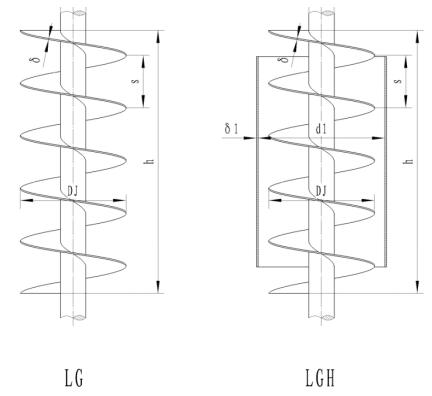

102、螺桿式LG 103、帶導流筒螺桿式LGH
| DJ | d | s | δ | h | h1 | d1 | δ1 | 重量 | |
| LG | LGH | ||||||||
| 80 | 30 | 80 | 2 | 200 | 160 | 88 | 2 | 1.297 | 2.054 |
| 100 | 40 | 100 | 2 | 250 | 200 | 110 | 2 | 2.752 | 3.936 |
| 125 | 45 | 125 | 3 | 310 | 250 | 150 | 2 | 4.585 | 6.435 |
| 160 | 50 | 160 | 3 | 400 | 320 | 190 | 2 | 7.355 | 10.39 |
| 180 | 55 | 180 | 4 | 450 | 360 | 215 | 3 | 10.41 | 16.16 |
| 200 | 60 | 200 | 4 | 500 | 400 | 240 | 3 | 13.59 | 20.7 |
| 220 | 65 | 220 | 6 | 550 | 440 | 260 | 3 | 18.88 | 27.47 |
| 250 | 70 | 250 | 6 | 620 | 500 | 300 | 4 | 24.83 | 39.63 |
| 280 | 75 | 280 | 8 | 700 | 560 | 330 | 4 | 34.32 | 52.88 |
| 320 | 80 | 320 | 8 | 800 | 640 | 380 | 4 | 44.85 | 69.1 |
| 360 | 90 | 360 | 10 | 900 | 720 | 430 | 6 | 45.96 | 112 |
| 400 | 100 | 400 | 10 | 1000 | 800 | 480 | 6 | 87.60 | 144.4 |
| 450 | 110 | 450 | 12 | 1120 | 900 | 540 | 6 | 123.5 | 195.4 |
| 500 | 120 | 500 | 12 | 1250 | 1000 | 600 | 8 | 159.4 | 277.7 |
| 560 | 130 | 560 | 14 | 1400 | 1120 | 670 | 8 | 218 | 366.5 |
| 630 | 140 | 630 | 14 | 1570 | 1260 | 750 | 8 | 282.2 | 470.1 |
| 710 | 150 | 710 | 16 | 1770 | 1420 | 850 | 10 | 380.4 | 678.8 |
| 800 | 160 | 800 | 16 | 2000 | 1600 | 960 | 10 | 487.2 | 866.0 |
螺帶螺桿式攪拌器
104、螺帶式LD 105、螺帶螺桿式LDG 106、錐底螺帶式ZLD 107、錐底螺帶螺桿ZLG
| DJ | d | dj | h | S | S1 | δ | δ1 | h | Φ | 重量 | |||
| LD | LDG | ZLD | ZLG | ||||||||||
| 285 | 40 | 80 | 25 | 285 | 80 | 4 | 2 | 285 | 14 | 5.725 | 5.839 | 4.32 | 5.14 |
| 380 | 50 | 100 | 30 | 380 | 100 | 4 | 2 | 380 | 18 | 11.06 | 11.25 | 8.56 | 10.01 |
| 470 | 60 | 125 | 35 | 470 | 1250 | 6 | 3 | 470 | 18 | 19.76 | 20.23 | 15.33 | 17.53 |
| 570 | 70 | 150 | 45 | 570 | 150 | 6 | 3 | 570 | 25 | 32.18 | 32.88 | 20.05 | 27.21 |
| 660 | 80 | 180 | 50 | 660 | 180 | 8 | 4 | 660 | 32 | 50.15 | 51.53 | 38.78 | 45.67 |
| 760 | 85 | 200 | 60 | 760 | 200 | 8 | 4 | 760 | 38 | 65.63 | 67.48 | 50.67 | 58.93 |
| 850 | 90 | 230 | 70 | 850 | 230 | 10 | 6 | 850 | 45 | 88.54 | 92.42 | 67.45 | 79.45 |
| 950 | 100 | 250 | 80 | 950 | 250 | 10 | 6 | 950 | 45 | 116.8 | 121.4 | 90.00 | 98.89 |
| 1140 | 110 | 300 | 95 | 1140 | 300 | 12 | 8 | 1140 | 57 | 175.9 | 185.1 | 135.02 | 148.3 |
| 1340 | 120 | 350 | 110 | 1340 | 350 | 12 | 8 | 1340 | 57 | 238.7 | 252.6 | 185.79 | 212 |
| 1530 | 130 | 400 | 125 | 1530 | 400 | 14 | 10 | 1530 | 76 | 343.0 | 366.6 | 263 | 306.4 |
| 1730 | 140 | 450 | 140 | 1230 | 450 | 14 | 10 | 1730 | 76 | 437.8 | 468.8 | 338.92 | 405.2 |
| 1920 | 150 | 500 | 160 | 1920 | 500 | 16 | 12 | 1920 | 89 | 586.0 | 633.1 | 449.72 | 541.9 |
| 2120 | 160 | 550 | 175 | 2120 | 550 | 16 | 12 | 2120 | 89 | 713.9 | 772.2 | 553.4 | 640.9 |
| 2320 | 170 | 600 | 190 | 2320 | 600 | 18 | 14 | 2320 | 108 | 916.8 | 999.5 | 706.44 | 827.5 |
| 2520 | 180 | 650 | 200 | 2520 | 650 | 20 | 14 | 2520 | 108 | 1127 | 1226 | 864.7 | 995.9 |
